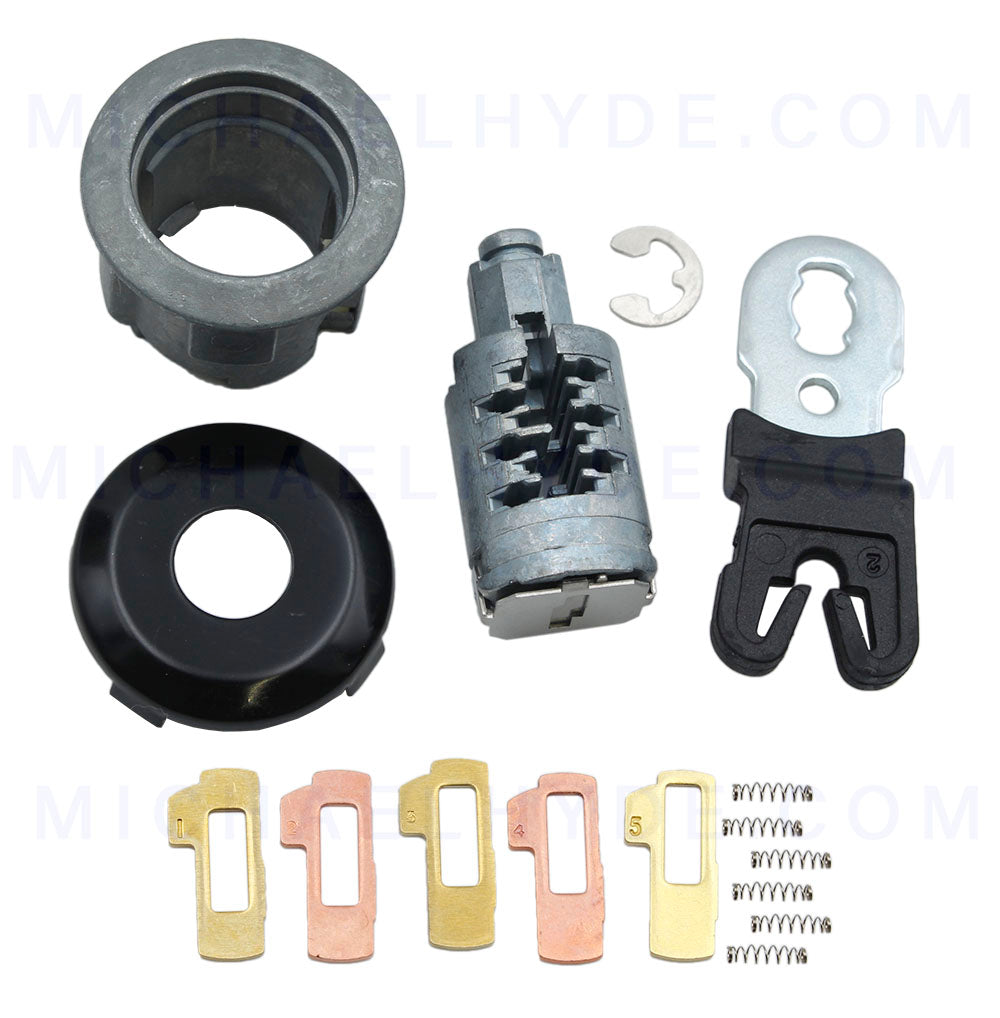

Ford Door Lock Kit ASP D-42-262 Door Lock Cylinder with Tumblers, Springs & Black Face Cap - H75 Keyway - similar to previous numbers D-42-252 or DL5887U (D42262)
$12.49
SKU A-D42262
Notice to the General Public:
Our Company only sells to Locksmiths, Car Repair Shops, Car Dealers, Towing, Restoration & Car Auction Companies. We do not sell to the general public. If your identity cannot be confirmed as falling into one of these groups, your order may be canceled without notice to you.
* All Sales Final On Closeout Items - No Returns / No Refunds
Ford Door Lock Kit ASP D-42-262 Door Lock Cylinder with Tumblers, Springs & Black Face Cap - H75 Keyway - similar to previous numbers D-42-252 or DL5887U (D42262)
This is the 8-cut uncoded door lock cylinder used on many different models since 1996 with the lock cylinder separate from the door handle. This change was made necessary because of the closing of the Lockcraft factory, and the current availability of component parts suitable for these applications.
The components of the new locks are not interchangeable with the previous locks or with the locks originally installed on the cars. But when installed on the car there should be no noticeable difference between this lock and the lock that was replaced.
These new locks use the first 8-cut design components that were used by Hurd Lock before that company stopped supplying Ford Motor Co.
Here are the exact supersedes:
Previous numbers D-42-252 or DL5887U
New number D-42-262
Other differences between the previous numbers and the new numbers are as follows:
New numbers include tumblers and springs for assembly, previous numbers did not include these parts.
New numbers include one pawl that is reversible for right and left side, previous numbers included 2 pawls handed for right side and left side (required because of the design of the end of the plug).
The pawl issue is important because similar locks supplied by Strattec or by Ford dealers do not include
pawls and no longer supply pawls for those locks.
Applications of these locks are as follows:
FORD:
Aerostar 11/95-97
Bronco 3/95-97
Econoline 1996-18
Explorer 1996-00
Explorer 2-door (wagon body) 2001-05
F-series all 1996
Ranger 1996-12
Heavy Trucks with 8-cut key and lock cylinder separate from the door handle
MERCURY:
Mountaineer 1997-00
MAZDA
B-Series pickup 1996-11
Aerostar 11/95-97
Bronco 3/95-97
Econoline 1996-18
Explorer 1996-00
Explorer 2-door (wagon body) 2001-05
F-series all 1996
Ranger 1996-12
Heavy Trucks with 8-cut key and lock cylinder separate from the door handle
MERCURY:
Mountaineer 1997-00
MAZDA
B-Series pickup 1996-11
.
